BASIC ICU BED- ELECTRIC

BASIC ICU BED- ELECTRIC – 5 functions

Category: Hospital Furniture

Model No:SMI-101

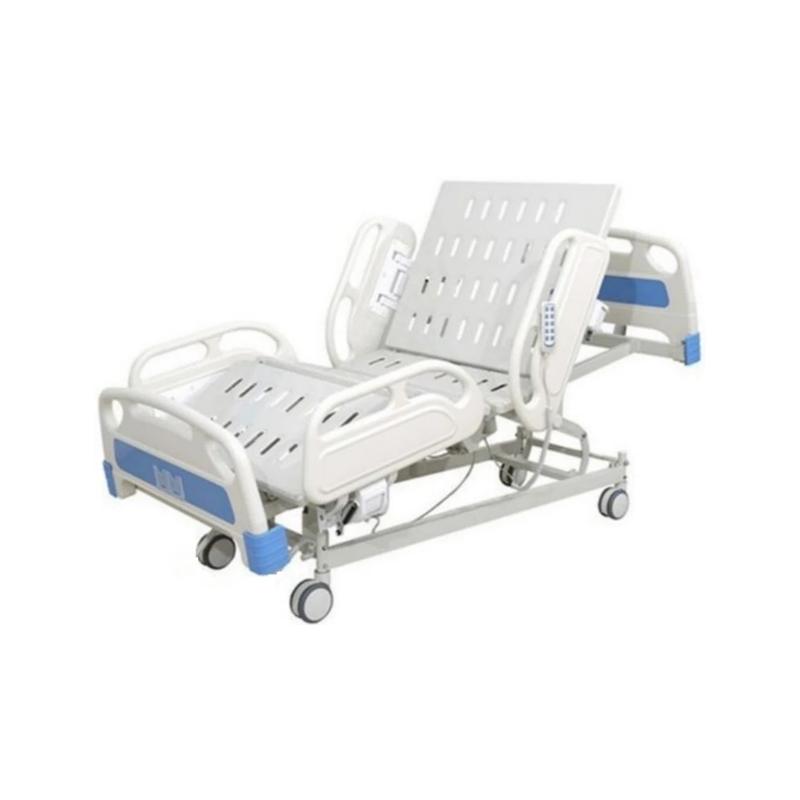

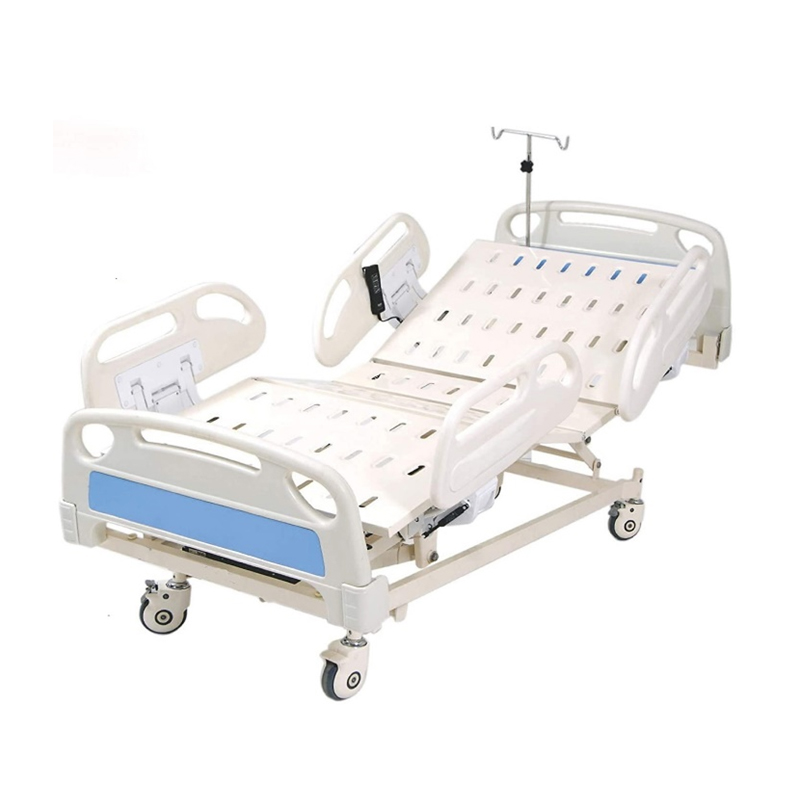

SMI-101 Basic ICU beds are Equipped with world-leading 4 Motor actuator system, this bed is designed and built integrating state-of-the-art technologies to enhance the patient’s comfort and improve caregiver’s efficiency. Its outstanding performance is complemented by its ergonomic features and best-in-class quality Specially Designed for ICU units. These Electric beds are mounted with Full length polymer moulded 4 pcs split type safety side rails which ensures convenience & Safety for the patient, comes with a hand held remote control unit.

Enquiry Now

Product Description

Features & Specifications:

Overall Size: L 2190mm × W 1010mm × H 450-750mm
Platform Size: L 2060mm x W 860mm
Frame Work: Made from high quality Epoxy Coated tubular CRCA steel finish that is highly resistant to rust and most of the hospital grade disinfectants.
Platform Top: 4 Section Perforated Platform top made from high Quality Epoxy Coated CRCA Sheet of 18swg, with integrated design on sides and resistant to rust & most of the hospital grade disinfectant.
Head/ Foot Panels: Polymer moulded head and foot end panels, easily removable without using any tools, also resistant to hospital-grade disinfectant products. Positions: Motorized Adjustment for Back rest tilting 0-70º, knee rest tilting 0-35°, Hi/Low Position, trendelenburg tilting 0-12°, Reverse trendelenburg tilting 0-12°.
Safety Side Rails: Bed Comes Four Pieces polymer moulded split type safety side panels.
Leg support: Bed Platform is duly supported on Trolley Base mounted with 125mm Dia. Noiseless Luxury castors with central Braking system
Mattress: Bed Comes with 4 section PU mattress of 100 thickness and 32kg density foam, duly covered with PU Rexine cover which is flexible, tear resistant, anti-static, anti-bacteria, flame-retardant, non-absorbing and easily cleanable with hospital-grade disinfection products.
Urine Bag Holders: Equipped with 2 hooks for holding Urine bags on both sides.
IV Pole: Bed is provided with 4 locations to mount IV Pole.
Load Capacity: Beds designed for patient weight of 130kg and max loading capacity of 180kg.
Finishing: All metal parts of bed is duly finished in high quality epoxy powder coating finish which is resistant to rust and also suitable to be used with hospital grade disinfectants.

Positions by hand Remote:	Optional Accessories:
Hi/Low Height Adjustment	Nursing Control panel
Backrest elevation	X-Ray Translucent Backrest
Knee rest elevation	Dual side manually operated CPR
Trendelenburg	Battery Backup System
Reverse trendelenburg
