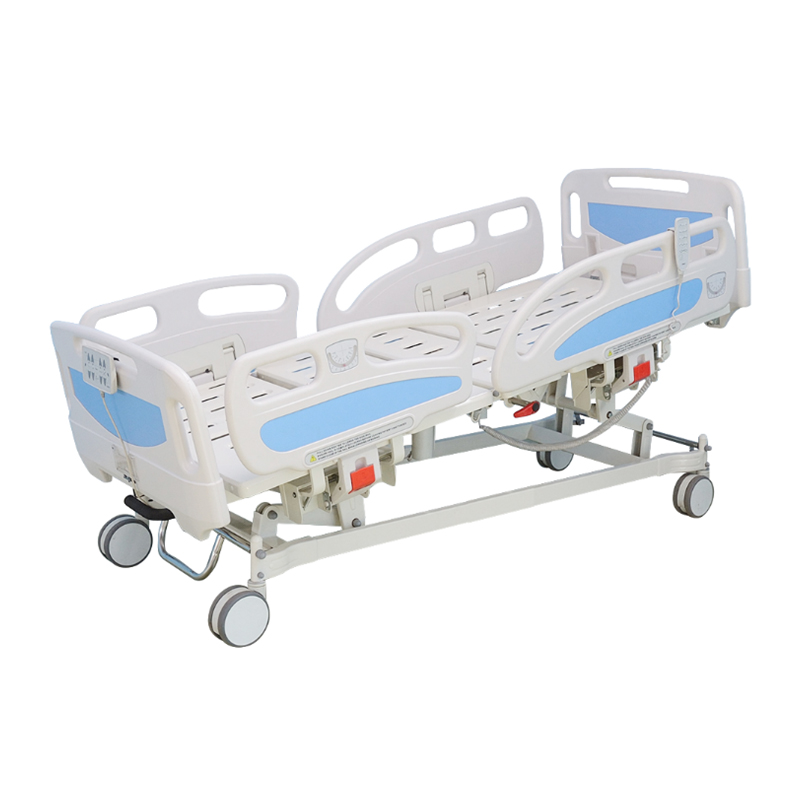

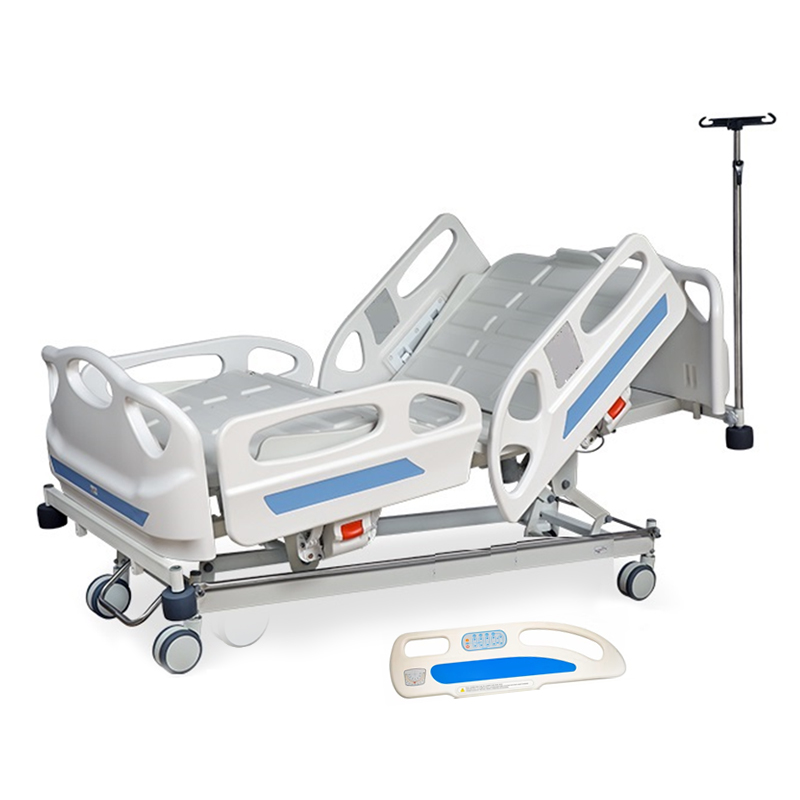

DELUXE ICU BED- ELECTRIC – 5 functions With Auto CPR

Category: Hospital Furniture

Model No:SMI – 100

SMI-100 Deluxe ICU beds are Equipped with High Quality Durable 4 Motors actuator system, this bed is designed and built integrating state-of-the-art technologies to enhance the patient’s comfort and improve caregiver’s efficiency. Its outstanding performance is complemented by its ergonomic features and best-in-class quality Specially Designed for ICU units. These Electric beds are mounted with Full length polymer moulded 4 pcs split type safety side rails which ensures convenience & Safety for the patient. These ICU Beds comes with a hand held remote control unit with an additional option for adding a Nursing control panel on foot end panel for better management.

Enquiry Now

Product Description

Features & Specifications:

Overall Size: L 2190mm × W 1010mm × H 450-750mm
Platform Size: L 2060mm x W 860mm
Frame Work: Made from high quality Epoxy Coated tubular CRCA steel finish that is highly resistant to rust and most of the hospital grade disinfectants.
Platform Top: 4 Section Perforated Platform top made from high Quality Epoxy Coated CRCA Sheet of 18swg, with integrated design on sides and resistant to rust & most of the hospital grade disinfectant.
Head/ Foot Panels: Polymer moulded head and foot end panels, easily removable without using any tools, also resistant to hospital-grade disinfectant products.
Positions: Motorized Adjustment for Back rest tilting 0-70º, knee rest tilting 0-35°, Hi/Low Position, trendelenburg tilting 0-12°, Reverse trendelenburg tilting 0-12°.
CPR Function: Bed comes with Quick release CPR function on Remote.
Safety Side Rails: Bed Comes Four Pieces polymer moulded split type safety side panels.
Leg support: Bed Platform is duly supported on Trolley Base mounted with 125mm Dia. Noiseless Luxury castors with central Braking system
Mattress: Bed Comes with 4 section PU mattress of 100 thickness and 32kg density foam, duly covered with PU Rexine cover which is flexible, tear resistant, anti-static, anti-bacteria, flame-retardant, non-absorbing and easily cleanable with hospital-grade disinfection products.
Urine Bag Holders: Equipped with 2 hooks for holding Urine bags on both sides.
IV Pole: Bed is provided with 4 locations to mount IV Pole.
Load Capacity: Beds designed for patient weight of 130kg and max loading capacity of 180kg.
Finishing: All metal parts of bed is duly finished in high quality epoxy powder coating finish which is resistant to rust and also suitable to be used with hospital grade disinfectants.

Positions by hand Remote:	Optional Accessories:
Hi/Low Height Adjustment	Nursing Control panel
Backrest elevation	Battery Backup
Knee rest elevation	X-Ray Translucent Backrest
Trendelenburg	Under Bed Light
Reverse trendelenburg	Dual side manually operated CPR Battery Backup System
